• (4) air registers w/positive shut-off
• Ashtray & cigar lighter
• Auxiliary pwr point
• Color-keyed cloth headliner
• Color-keyed scuff plates
• Dash-top tray
• Driver & passenger grab handles
• Dual color-keyed coat hooks
• Front door operated dome lamp w/time delay off & IP switch
• Front passenger-side roof ride handle
• Front/rear map lamps
• Glove box
• Instrument panel mounted storage bin & trash bag hook
• Rear seat LH/RH grab handles
• Rear seating roof ride handles

• (2) front tow hooks
• 115-amp HD alternator
• 2-speed transfer case w/manual locking front hubs
• 4-ton hydraulic jack
• 4-wheel anti-lock braking system (ABS)
• 4-wheel drive
• 4.10 axle ratio
• Front/rear stabilizer bar
• Full-floating rear axle
• Full-size spare tire & wheel w/lock & carrier
• HD shock absorbers
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes
• Pwr steering w/steering damper
• Rear auxiliary springs
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4-pin trailer combination connector, trailer brake wiring kit w/o controller

• 4-wheel anti-lock braking system (ABS)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Driver & front passenger airbags

6.4L OHV V8 TURBO-DIESEL POWER STROKE ENGINE

• 135-amp HD alternator
• dual 750 CCA battery
• turbo boost gauge
• air filter minder
• 15
• 000# trailer hitch receiver w/2.5" hitch & 2" hitch adapter *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• ME
• MI
• MN
• MT
• NH
• NY
• ND
• SD
• VT
• WI
• WY*

• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Cruise Control
• Trip Computer
• AM/FM Stereo
• Power Outlet
• Front Reading Lamps
• Rear Reading Lamps
• Passenger Vanity Mirror
• Driver Air Bag
• Passenger Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Capacity (amps): HD 115
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 9000
• Curb Weight - Front (lbs): 4709
• Curb Weight - Front (lbs): 3991
• Curb Weight - Rear (lbs): 3251
• Curb Weight - Rear (lbs): 3154
• Gross Vehicle Weight Rating Cap (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 12600
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2250
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1965
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3825
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3275
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Dana 60 Monobeam
• Axle Type - Rear: Dana 80 Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9000
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 2910
• Rear Tire Capacity (lbs): 2910
• Spare Tire Capacity (lbs): 2910
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.2
• Width, Max w/o mirrors (in): 95.5
• Height, Overall (in): 79.6
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): 80.2
• Ground to Top of Load Floor (in): 35.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

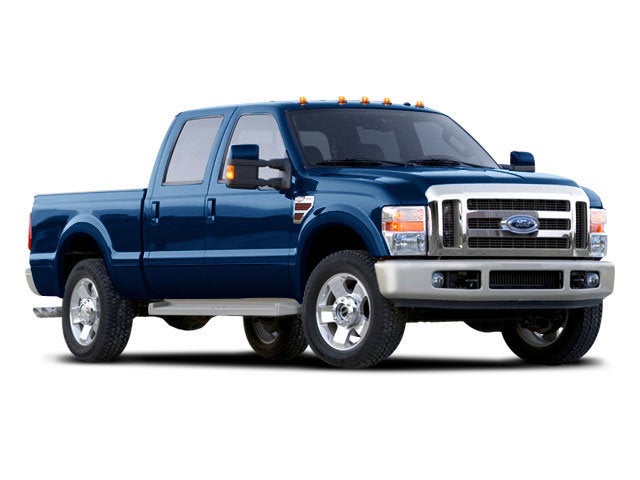

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
