• (2) front/rear pwr points
• (3) grab handles
• (4) color keyed coat hooks
• (4) load floor tie-down hooks
• 5-passenger seating
• 60/40 split-folding 2nd row seat w/head restraints
• Air conditioning
• AM/FM stereo w/CD-inc clock, 4-speakers, 60-watts
• Cargo area dome light
• Cargo management system
• Center dome lamp w/1st row map lights
• Cloth insert door trim spears
• Cloth low-back front buckets w/adjustable head restraints
• Color keyed plastic scuff plates on all doors & liftgate
• Illuminated entry
• Illuminated glove box
• Message center
• Pwr door locks w/cargo area lock/unlock button
• Pwr windows-inc: "one-touch-down" driver window
• Rear window defroster
• Remote keyless entry-inc: 2 key fobs, 2-stage unlocking, autolock, liftgate glass release
• Securilock/immobilizer passive anti-theft system
• Speed control w/fingertip control, tap-up/tap-down feature
• Tilt steering column

• 22.5 gallon fuel tank
• 3.55 axle ratio
• 4-wheel anti-lock brakes
• 4-Wheel independent suspension
• 72 amp maintenance-free battery w/battery saver feature
• AdvanceTrac w/roll stability control
• Brake/shift interlock
• Class II trailer towing w/receiver hitch-inc: 3500# capacity, 4-pin connector
• Full-size spare tire w/steel wheel, underbody mount
• Pwr 4-wheel disc brakes
• Pwr rack & pinion steering
• Rear wheel drive

• 1st/2nd row 3-point safety belts all seating positions w/outboard height adjustment
• 4-wheel anti-lock brakes
• AdvanceTrac w/roll stability control
• BeltMinder feature
• Child safety rear door locks
• Driver & front passenger "Second Generation" airbags w/theft deterrent
• Front "crumple zones"
• Fuel pump inertia shutoff switch
• Personal Safety System-inc: dual stage front air bags, safety belt pretensioners/energy management retractors/usage sensors, driver's seat position sensor, crash severity sensor, restraint control module
• Rear child seat tether anchor brackets
• Side intrusion door beams

4.0L SOHC V6 FLEXIBLE FUEL CAPABLE ENGINE

• (STD)

• Rear Wheel Drive
• Tow Hitch
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Cloth Seats
• Bucket Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Cruise Control
• Keyless Entry
• Immobilizer
• A/C
• Rear Defrost
• AM/FM Stereo
• CD Player
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Front Reading Lamps
• Passenger Air Bag Sensor
• Child Safety Locks

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2735
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2254
• Curb Weight - Rear (lbs): 2055
• Gross Vehicle Weight Rating Cap (lbs): 5740
• Gross Combined Wt Rating (lbs): 7700
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3240
• Dead Weight Hitch - Max Tongue Wt. (lbs): 324
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil spring
• Suspension Type - Rear: Coil spring
• Spring Capacity - Front (lbs): 1827
• Spring Capacity - Rear (lbs): 1940
• Axle Type - Front: Ford SLA
• Axle Type - Rear: Ford SLA
• Axle Capacity - Front (lbs): 2800
• Axle Capacity - Rear (lbs): 3600
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 32.0
• Shock Absorber Diameter - Rear (mm): 32.0
• Stabilizer Bar Diameter - Front (in): 1.34
• Stabilizer Bar Diameter - Rear (in): 0.77
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 0.37
• Rear Brake Rotor Diam x Thickness (in): 11.9 x 0.37
• Tires
• Front Tire Order Code: T52
• Rear Tire Order Code: T52
• Spare Tire Order Code: T52
• Front Tire Size: P235/70R16
• Rear Tire Size: P235/70R16
• Spare Tire Size: P235/70R16
• Front Tire Capacity (lbs): 1460
• Rear Tire Capacity (lbs): 1460
• Spare Tire Capacity (lbs): 1460
• Revolutions/Mile @ 45 mph - Front: 720
• Revolutions/Mile @ 45 mph - Rear: 720
• Revolutions/Mile @ 45 mph - Spare: 720
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power Rack & Pinion
• Steering Ratio (:1), On Center: 17
• Steering Ratio (:1), At Lock: 17
• Turning Diameter - Curb to Curb (ft): 36.8
• Turning Diameter - Wall to Wall (ft): 38.4
• Frame
• Frame Type: Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 113.8
• Length, Overall w/rear bumper (in): 189.5
• Width, Max w/o mirrors (in): 72.1
• Height, Overall (in): 71.4
• Overhang, Front (in): 44.1
• Overhang, Rear w/bumper (in): 37.6
• Ground to Top of Load Floor (in): 31.3
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Rear Door Opening Height (in): 33.6
• Rear Door Opening Width (in): 48.3
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 76.0
• Cargo Area Length @ Floor to Seat 2 (in): 41.4
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 45.4
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 86.2
• Cargo Volume to Seat 2 (ft³): 48.6
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.9
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 59.1
• Front Hip Room (in): 55.0
• Second Head Room (in): 38.9
• Second Leg Room (in): 35.9
• Second Shoulder Room (in): 58.9
• Second Hip Room (in): 54.2
• Summary

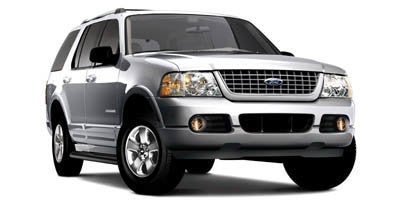

• Vehicle Name: Ford Explorer
• Body Style: 4 Door
• Body Code: 114" WB
